API

Inheritance diagram of Node
class treebeard.models.Node(*args, **kwargs)

Bases: django.db.models.base.Model

Node class

This is the base class that defines the API of all tree models in this library:

Warning

Please be aware of the Known Caveats when using this library.

classmethod add_root(**kwargs)

Adds a root node to the tree. The new root node will be the new rightmost root node. If you want to insert a root node at a specific position, use add_sibling() in an already existing root node instead.

Parameters:
  • **kwargs – object creation data that will be passed to the inherited Node model
  • instance – Instead of passing object creation data, you can pass an already-constructed (but not yet saved) model instance to be inserted into the tree.
Returns:

the created node object. It will be save()d by this method.

Raises:

NodeAlreadySaved – when the passed instance already exists in the database

Example:

MyNode.add_root(numval=1, strval='abcd')

Or, to pass in an existing instance:

new_node = MyNode(numval=1, strval='abcd')
MyNode.add_root(instance=new_node)
add_child(**kwargs)

Adds a child to the node. The new node will be the new rightmost child. If you want to insert a node at a specific position, use the add_sibling() method of an already existing child node instead.

Parameters:
  • **kwargs – Object creation data that will be passed to the inherited Node model
  • instance – Instead of passing object creation data, you can pass an already-constructed (but not yet saved) model instance to be inserted into the tree.
Returns:

The created node object. It will be save()d by this method.

Raises:

NodeAlreadySaved – when the passed instance already exists in the database

Example:

node.add_child(numval=1, strval='abcd')

Or, to pass in an existing instance:

new_node = MyNode(numval=1, strval='abcd')
node.add_child(instance=new_node)
add_sibling(pos=None, **kwargs)

Adds a new node as a sibling to the current node object.

Parameters:
  • pos

    The position, relative to the current node object, where the new node will be inserted, can be one of:

    • first-sibling: the new node will be the new leftmost sibling
    • left: the new node will take the node’s place, which will be moved to the right 1 position
    • right: the new node will be inserted at the right of the node
    • last-sibling: the new node will be the new rightmost sibling
    • sorted-sibling: the new node will be at the right position according to the value of node_order_by
  • **kwargs – Object creation data that will be passed to the inherited Node model
  • instance – Instead of passing object creation data, you can pass an already-constructed (but not yet saved) model instance to be inserted into the tree.
Returns:

The created node object. It will be saved by this method.

Raises:
  • InvalidPosition – when passing an invalid pos parm
  • InvalidPosition – when node_order_by is enabled and the pos parm wasn’t sorted-sibling
  • MissingNodeOrderBy – when passing sorted-sibling as pos and the node_order_by attribute is missing
  • NodeAlreadySaved – when the passed instance already exists in the database

Examples:

node.add_sibling('sorted-sibling', numval=1, strval='abc')

Or, to pass in an existing instance:

new_node = MyNode(numval=1, strval='abc')
node.add_sibling('sorted-sibling', instance=new_node)
delete()

Removes a node and all it’s descendants.

Note

Call our queryset’s delete to handle children removal. Subclasses will handle extra maintenance.

classmethod get_tree(parent=None)
Returns:A list of nodes ordered as DFS, including the parent. If no parent is given, the entire tree is returned.
get_depth()
Returns:the depth (level) of the node

Example:

node.get_depth()
get_ancestors()
Returns:A queryset containing the current node object’s ancestors, starting by the root node and descending to the parent. (some subclasses may return a list)

Example:

node.get_ancestors()
get_children()
Returns:A queryset of all the node’s children

Example:

node.get_children()
get_children_count()
Returns:The number of the node’s children

Example:

node.get_children_count()
get_descendants()
Returns:A queryset of all the node’s descendants, doesn’t include the node itself (some subclasses may return a list).

Example:

node.get_descendants()
get_descendant_count()
Returns:the number of descendants of a node.

Example:

node.get_descendant_count()
get_first_child()
Returns:The leftmost node’s child, or None if it has no children.

Example:

node.get_first_child()
get_last_child()
Returns:The rightmost node’s child, or None if it has no children.

Example:

node.get_last_child()
get_first_sibling()
Returns:The leftmost node’s sibling, can return the node itself if it was the leftmost sibling.

Example:

node.get_first_sibling()
get_last_sibling()
Returns:The rightmost node’s sibling, can return the node itself if it was the rightmost sibling.

Example:

node.get_last_sibling()
get_prev_sibling()
Returns:The previous node’s sibling, or None if it was the leftmost sibling.

Example:

node.get_prev_sibling()
get_next_sibling()
Returns:The next node’s sibling, or None if it was the rightmost sibling.

Example:

node.get_next_sibling()
get_parent(update=False)
Returns:the parent node of the current node object. Caches the result in the object itself to help in loops.
Parameters:update – Updates de cached value.

Example:

node.get_parent()
get_root()
Returns:the root node for the current node object.

Example:

node.get_root()
get_siblings()
Returns:A queryset of all the node’s siblings, including the node itself.

Example:

node.get_siblings()
is_child_of(node)
Returns:True if the node is a child of another node given as an argument, else, returns False
Parameters:node – The node that will be checked as a parent

Example:

node.is_child_of(node2)
is_descendant_of(node)
Returns:True if the node is a descendant of another node given as an argument, else, returns False
Parameters:node – The node that will be checked as an ancestor

Example:

node.is_descendant_of(node2)
is_sibling_of(node)
Returns:True if the node is a sibling of another node given as an argument, else, returns False
Parameters:node – The node that will be checked as a sibling

Example:

node.is_sibling_of(node2)
is_root()
Returns:True if the node is a root node (else, returns False)

Example:

node.is_root()
is_leaf()
Returns:True if the node is a leaf node (else, returns False)

Example:

node.is_leaf()
move(target, pos=None)

Moves the current node and all it’s descendants to a new position relative to another node.

Parameters:
  • target – The node that will be used as a relative child/sibling when moving
  • pos

    The position, relative to the target node, where the current node object will be moved to, can be one of:

    • first-child: the node will be the new leftmost child of the target node
    • last-child: the node will be the new rightmost child of the target node
    • sorted-child: the new node will be moved as a child of the target node according to the value of node_order_by
    • first-sibling: the node will be the new leftmost sibling of the target node
    • left: the node will take the target node’s place, which will be moved to the right 1 position
    • right: the node will be moved to the right of the target node
    • last-sibling: the node will be the new rightmost sibling of the target node
    • sorted-sibling: the new node will be moved as a sibling of the target node according to the value of node_order_by

    Note

    If no pos is given the library will use last-sibling, or sorted-sibling if node_order_by is enabled.

Returns:

None

Raises:
  • InvalidPosition – when passing an invalid pos parm
  • InvalidPosition – when node_order_by is enabled and the pos parm wasn’t sorted-sibling or sorted-child
  • InvalidMoveToDescendant – when trying to move a node to one of it’s own descendants
  • PathOverflow – when the library can’t make room for the node’s new position
  • MissingNodeOrderBy – when passing sorted-sibling or sorted-child as pos and the node_order_by attribute is missing

Note

The node can be moved under another root node.

Examples:

node.move(node2, 'sorted-child')
node.move(node2, 'prev-sibling')
save(force_insert=False, force_update=False, using=None, update_fields=None)

Saves the current instance. Override this in a subclass if you want to control the saving process.

The ‘force_insert’ and ‘force_update’ parameters can be used to insist that the “save” must be an SQL insert or update (or equivalent for non-SQL backends), respectively. Normally, they should not be set.

classmethod get_first_root_node()
Returns:The first root node in the tree or None if it is empty.

Example:

MyNodeModel.get_first_root_node()
classmethod get_last_root_node()
Returns:The last root node in the tree or None if it is empty.

Example:

MyNodeModel.get_last_root_node()
classmethod get_root_nodes()
Returns:A queryset containing the root nodes in the tree.

Example:

MyNodeModel.get_root_nodes()
classmethod load_bulk(bulk_data, parent=None, keep_ids=False)

Loads a list/dictionary structure to the tree.

Parameters:
  • bulk_data

    The data that will be loaded, the structure is a list of dictionaries with 2 keys:

    • data: will store arguments that will be passed for object creation, and
    • children: a list of dictionaries, each one has it’s own data and children keys (a recursive structure)
  • parent – The node that will receive the structure as children, if not specified the first level of the structure will be loaded as root nodes
  • keep_ids – If enabled, loads the nodes with the same id that are given in the structure. Will error if there are nodes without id info or if the ids are already used.
Returns:

A list of the added node ids.

Note

Any internal data that you may have stored in your nodes’ data (path, depth) will be ignored.

Note

If your node model has a ForeignKey this method will try to load the related object before loading the data. If the related object doesn’t exist it won’t load anything and will raise a DoesNotExist exception. This is done because the dump_data method uses integers to dump related objects.

Note

If your node model has node_order_by enabled, it will take precedence over the order in the structure.

Example:

data = [{'data':{'desc':'1'}},
        {'data':{'desc':'2'}, 'children':[
          {'data':{'desc':'21'}},
          {'data':{'desc':'22'}},
          {'data':{'desc':'23'}, 'children':[
            {'data':{'desc':'231'}},
          ]},
          {'data':{'desc':'24'}},
        ]},
        {'data':{'desc':'3'}},
        {'data':{'desc':'4'}, 'children':[
          {'data':{'desc':'41'}},
        ]},
]
# parent = None
MyNodeModel.load_data(data, None)

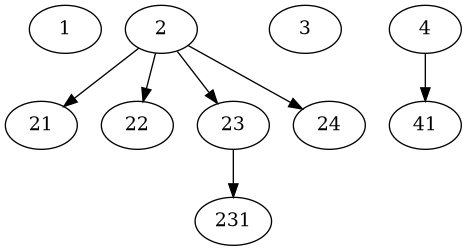

Will create:

digraph load_bulk_digraph {
"1";
"2";
"2" -> "21";
"2" -> "22";
"2" -> "23" -> "231";
"2" -> "24";
"3";
"4";
"4" -> "41";
}
classmethod dump_bulk(parent=None, keep_ids=True)

Dumps a tree branch to a python data structure.

Parameters:
  • parent – The node whose descendants will be dumped. The node itself will be included in the dump. If not given, the entire tree will be dumped.
  • keep_ids – Stores the id value (primary key) of every node. Enabled by default.
Returns:

A python data structure, described with detail in load_bulk()

Example:

tree = MyNodeModel.dump_bulk()
branch = MyNodeModel.dump_bulk(node_obj)
classmethod find_problems()

Checks for problems in the tree structure.

classmethod fix_tree()

Solves problems that can appear when transactions are not used and a piece of code breaks, leaving the tree in an inconsistent state.

classmethod get_descendants_group_count(parent=None)

Helper for a very common case: get a group of siblings and the number of descendants (not only children) in every sibling.

Parameters:parent – The parent of the siblings to return. If no parent is given, the root nodes will be returned.
Returns:A list (NOT a Queryset) of node objects with an extra attribute: descendants_count.

Example:

# get a list of the root nodes
root_nodes = MyModel.get_descendants_group_count()

for node in root_nodes:
    print '%s by %s (%d replies)' % (node.comment, node.author,
                                     node.descendants_count)
classmethod get_annotated_list(parent=None, max_depth=None)

Gets an annotated list from a tree branch.

Parameters:
  • parent – The node whose descendants will be annotated. The node itself will be included in the list. If not given, the entire tree will be annotated.
  • max_depth – Optionally limit to specified depth

Example:

annotated_list = MyModel.get_annotated_list()

With data:

digraph get_annotated_list_digraph {
"a";
"a" -> "ab";
"ab" -> "aba";
"ab" -> "abb";
"ab" -> "abc";
"a" -> "ac";
}

Will return:

[
    (a,     {'open':True,  'close':[],    'level': 0})
    (ab,    {'open':True,  'close':[],    'level': 1})
    (aba,   {'open':True,  'close':[],    'level': 2})
    (abb,   {'open':False, 'close':[],    'level': 2})
    (abc,   {'open':False, 'close':[0,1], 'level': 2})
    (ac,    {'open':False, 'close':[0],   'level': 1})
]

This can be used with a template like:

{% for item, info in annotated_list %}
    {% if info.open %}
        <ul><li>
    {% else %}
        </li><li>
    {% endif %}

    {{ item }}

    {% for close in info.close %}
        </li></ul>
    {% endfor %}
{% endfor %}

Note

This method was contributed originally by Alexey Kinyov, using an idea borrowed from django-mptt.

New in version 1.55.

classmethod get_annotated_list_qs(qs)

Gets an annotated list from a queryset.

classmethod get_database_vendor(action)

returns the supported database vendor used by a treebeard model when performing read (select) or write (update, insert, delete) operations.

Parameters:actionread or write
Returns:postgresql, mysql or sqlite

Example:

MyNodeModel.get_database_vendor("write")

New in version 1.61.
